Low temperature hot water chillers are further classified as Low Capacity (L5 Series) and High Capacity (5G Series)

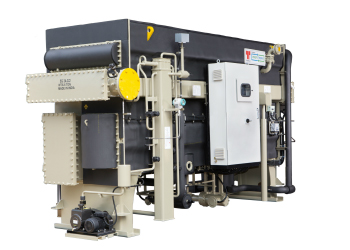

5G series is a simple and compact small capacity single effect hot water chiller. It is widely used for combined heat power and cooling (CHPC) based air-conditioning application is USA and Europe.

Operating Range:

Capacity: 10-200 TR (35-700 kW)
Chilled water temperature: Up to 1°C (34°F) and -2°C (28.5°F) with salt water
Hot water temperature: 75°C (167°F) to 120°C (248°F)
COP: 0.72 – 0.75

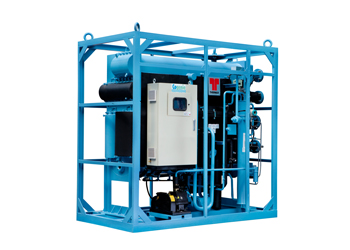

L5 Series comes with two stage evaporation & condensation technology (also known as Twin design). This ensures the lowest specific heat input as compared to other contemporary VAMs, making them the most efficient VAM in its category. This results in lowest operating cost throughout the life cycle of the VAM and lowest water consumption in cooling tower thus saving precious water.

Operating Range:

Capacities: From 10 to 200 TR (35 to 700 kW)
Capacities: From 200 to 1380 TR (700 to 4850 kW)
Chilled water temperature: Up to 1ºC (34ºF) and -2ºC (28.5ºF) with brine
Hot Water temperature: From 75ºC(167ºF) to 120ºC (248ºF)
COP: 0.75 – 0.8
